GEL BATTERIE
WH-12200Brand:
wanheMax.Power:
200AHDimensions:
522×238×218Certificate:
CE ,UL,INMETRO, SUNCAPWarranty:
1 YEARPayment:
T/T, L/C,etc;

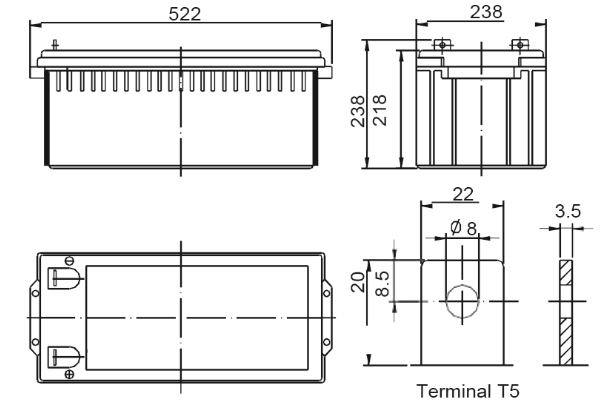

Product Dimensions
Discharge Curve
Packing
Battery |
mm±1 |
522×238×2218 |
inch |
20.6×9.45×9.53 |
|
Box |
mm±2 |
546×264×290 |
inch |
21.5×10.4×11.5 |
|
Quantity Per Box |
1 PCS |
|
Net weight Per Cell |
54.0KG±200G |
|
Net weight Per Box |
54.0 KG |
|
Gross Weight |
55.0 KG |
Nominal Voltage |
12V |
||
Nominal Capacity (10 hour rate) |
200Ah |
||
Capacity 25℃(77°F) |
10 hour rate (20A) |
200Ah |
|
3 hour rate (50A) |
150Ah |
||
1 hour rate (110A) |
110Ah |
||
Internal Resistance |
Full Charged Battery 25℃(77°F) |
≤8mΩ |
|
Cyclic Life |
50%(C10) Depth of discharge |
600Times |
|
Float Life |
25℃(77°F) Float charge at 13.8V |
About 5 Years |
|
Capacity affected by Temperature (10 hour ) |
40℃ (104°F) |
102% |
|
25℃ (77°F) |
100% |
||
0℃ (32°F) |
85% |
||
-15℃ (5°F) |
65% |
||
Self-Discharge 25℃(77°F) |
Capacity after 3 month storage |
90% |
|
Capacity after 6 month storage |
80% |
||
Capacity after 12 month storage |
62% |
||
Charge (Constant Voltage) 25℃(77°F) |
Cycle |
Initial Charging Current Less than 60A Voltage 14.6-15.0V |
|
Float |
Voltage 13.5-13.8V |
