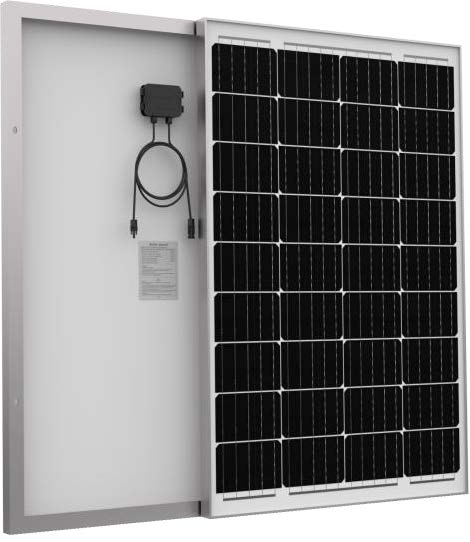

120w Mono Solar Panel
WHSL-158M120Brand:
WANHEMax.Power:
120WDimensions:
1030 X 680 X 30 mmWarranty:
5 YEARPayment:
T/T, L/C,etc;120w Mono Solar Panel,Solar Panel,Solar Panel Supplier,Mono Solar Panel
WH Company Supply High Quality Solar Panel,Mono Solar Panel,The Solar Cell Effciency Can Be Reached 18%-21%.
Module |
WHSL-158M120 |
Power (W) |
120 |
Voltage at Pmax (V) |
17.5 |
Current at Pmax (A) |
6.86 |
Open Circuit Voltage (V) |
21.5 |
Short Circuit Current (A) |
7.44 |
Dimension (mm) |
1030*680*30 |

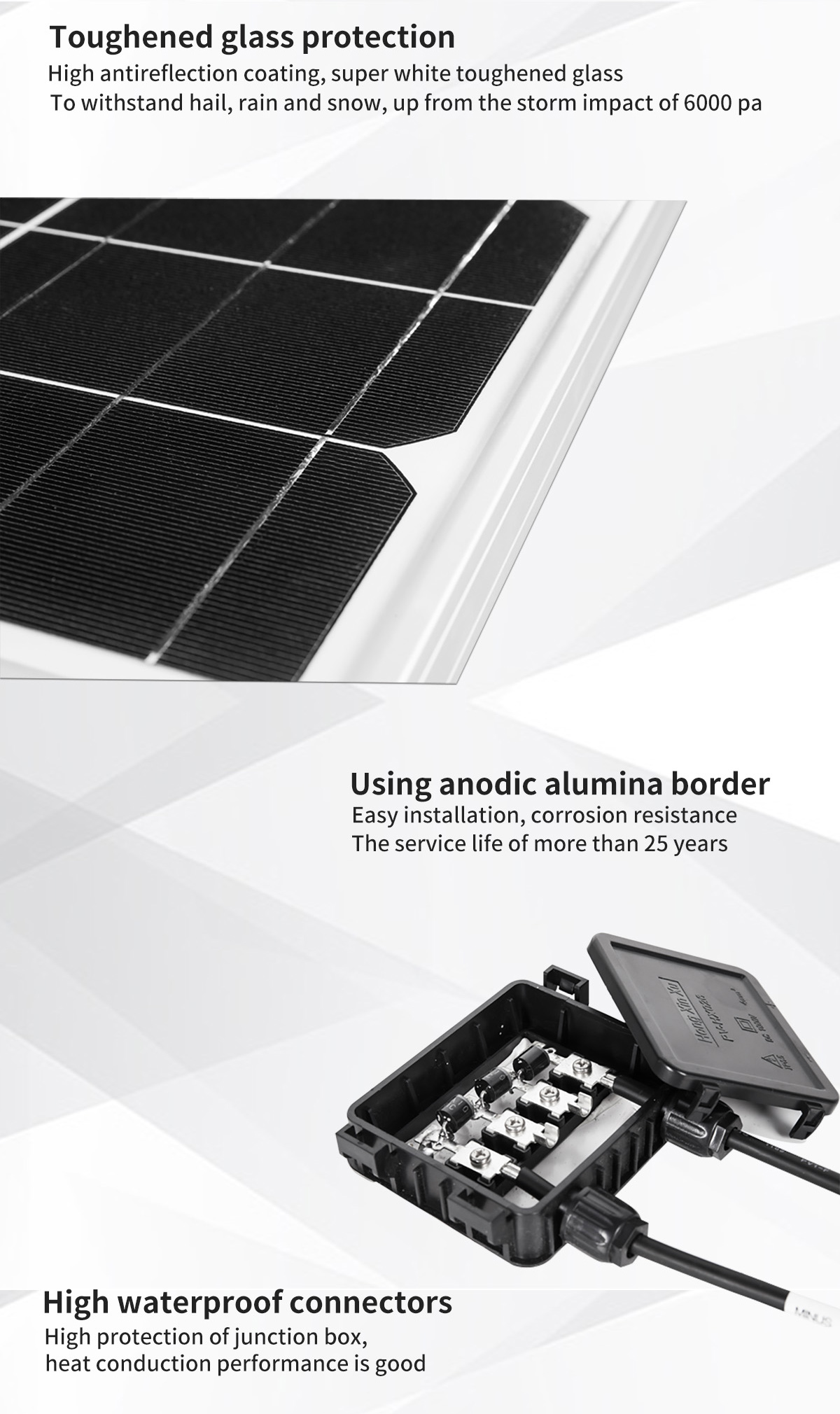

Terminal Box |
IP65 |
Maximum system voltage (V) |
DC1000 |
Operating Temperature(℃) |
-40℃ ---85℃ |
