GEL BATTERIE
WH-12100Brand:
wanheMax.Power:
100AHDimensions:
330×172×222Certificate:
CE ,UL,INMETRO, SUNCAPWarranty:
1 YEARPayment:

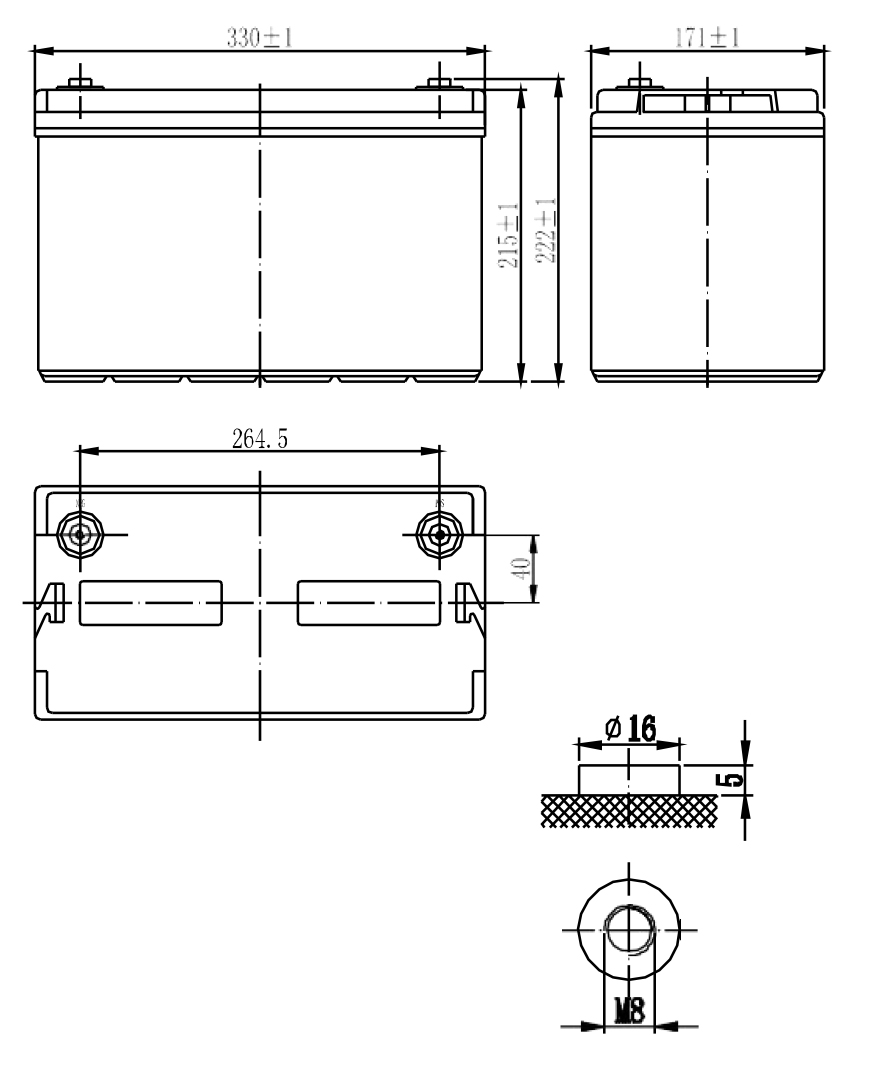

T/T, L/C,etc;Product Dimensions
Discharge Curve
Packing
|
Battery |
mm±1 |
330×171×240 |
|
inch |
13.0×6.78×9.45 |
|
|
Box |
mm±2 |
352×196×272 |
|
inch |
13.9×7.72×10.7 |
|
|
Quantity Per Box |
1 PCS |
|
|
Net weight Per Cell |
26.0 Kg±150g |
|
|
Net weight Per Box |
26.0 Kg |
|
|
Gross Weight |
26.8 Kg |
|
|
Nominal Voltage |
12V |
||
|
Nominal Capacity (10 hour rate) |
100Ah |
||
|
Capacity 25℃(77°F) |
10 hour rate (10A) |
100Ah |
|
|
3 hour rate (25A) |
75Ah |
||
|
1 hour rate (55A) |
55Ah |
||
|
Internal Resistance |
Full Charged Battery 25℃(77°F) |
≤5mΩ |
|
|
Cyclic Life |
50%(C10) Depth of discharge |
800Times |
|
|
Float Life |
25℃(77°F) Float charge at 13.8V |
About 5 Years |
|
|
Capacity affected by Temperature (10 hour ) |
40℃ (104°F) |
102% |
|
|
25℃ (77°F) |
100% |
||
|
0℃ (32°F) |
85% |
||
|
-15℃ (5°F) |
65% |
||
|
Self-Discharge 25℃(77°F) |
Capacity after 3 month storage |
90% |
|
|
Capacity after 6 month storage |
80% |
||
|
Capacity after 12 month storage |
62% |
||
|
Charge (Constant Voltage) 25℃(77°F) |
Cycle |
Initial Charging Current Less than 30A Voltage 14.6-15.0V |
|
|
Float |
Voltage 13.5-13.8V |
||
