WHSL-182M80
WHSL-182M100
WHSL-182M120
WHSL-182M160
 |
|

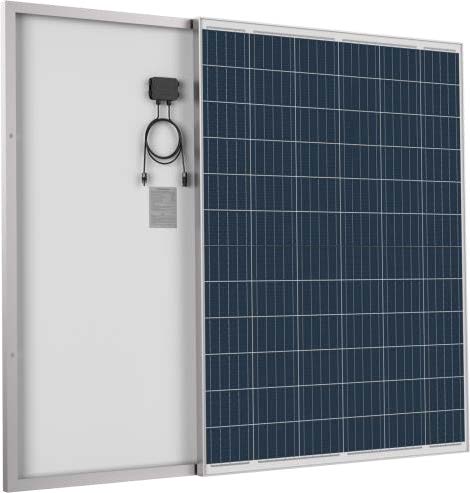

200w Poly Solar Panel
WHSL-156P200Brand:
WANHEMax.Power:
200wDimensions:
1340 X 992 X 35 mmCertificate:
CE ,UL,INMETRO, SUNCAPWarranty:
5 YEARPayment:
T/T, L/C,etc;
200w Poly Solar Panel,Solar Panel,Solar Panel Supplier,Poly Solar Panel
WH Company Supply High Quality Solar Panel,Poly Solar Panel,The Solar Cell Effciency Can Be Reached 16%-20.5%.
Technical Parameter of Poly Solar Panel
|
Module |
WHSL-156P200 |
|
Power (W) |
200 |
|
Voltage at Pmax (V) |
35/29.52 |
|
Current at Pmax (A) |
5.71/9.04 |
|
Open Circuit Voltage (V) |
43/24.52 |
|
Short Circuit Current (A) |
6.2/8.16 |
|
Dimension （mm） |
1480*670*30 |
|
Terminal Box |
IP65 |
|
Maximum system voltage (V) |
DC1000 |
|
Operating Temperature(℃) |
-40℃ ---85℃ |
