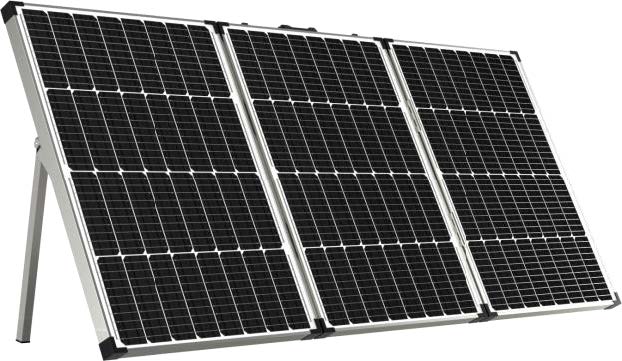

240W Folding Solar Panel
WHSL-GFD240Brand:
WANHEMax.Power:
240wDimensions:
OTHERCertificate:
CE ,UL,INMETRO, SUNCAPWarranty:
5 YEARPayment:
T/T, L/C,etc;
240w Folding Solar Panel,Solar Panel,Solar Panel Supplier,Folding Solar Panel
WH Company Supply High Quality Solar Panel,Poly Solar Panel,The Solar Cell Effciency Can Be Reached 16%-20.5%.
Technical Parameter of Folding Solar Panel
|
Module |
WHSL-GFD240 |
|
Power (W) |
240 |
|
Voltage at Pmax (V) |
18.2 |
|
Current at Pmax (A) |
13.2 |
|
Open Circuit Voltage (V) |
21.8 |
|
Short Circuit Current (A) |
14.68 |
|
Folding Dimension （mm） |
760*550*110 |
|
Deployment Dimension （mm） |
1660*760*30 |
|
Terminal Box |
IP65 |
|
Maximum system voltage (V) |
DC1000 |
|
Operating Temperature(℃) |
-40℃ ---85℃ |
