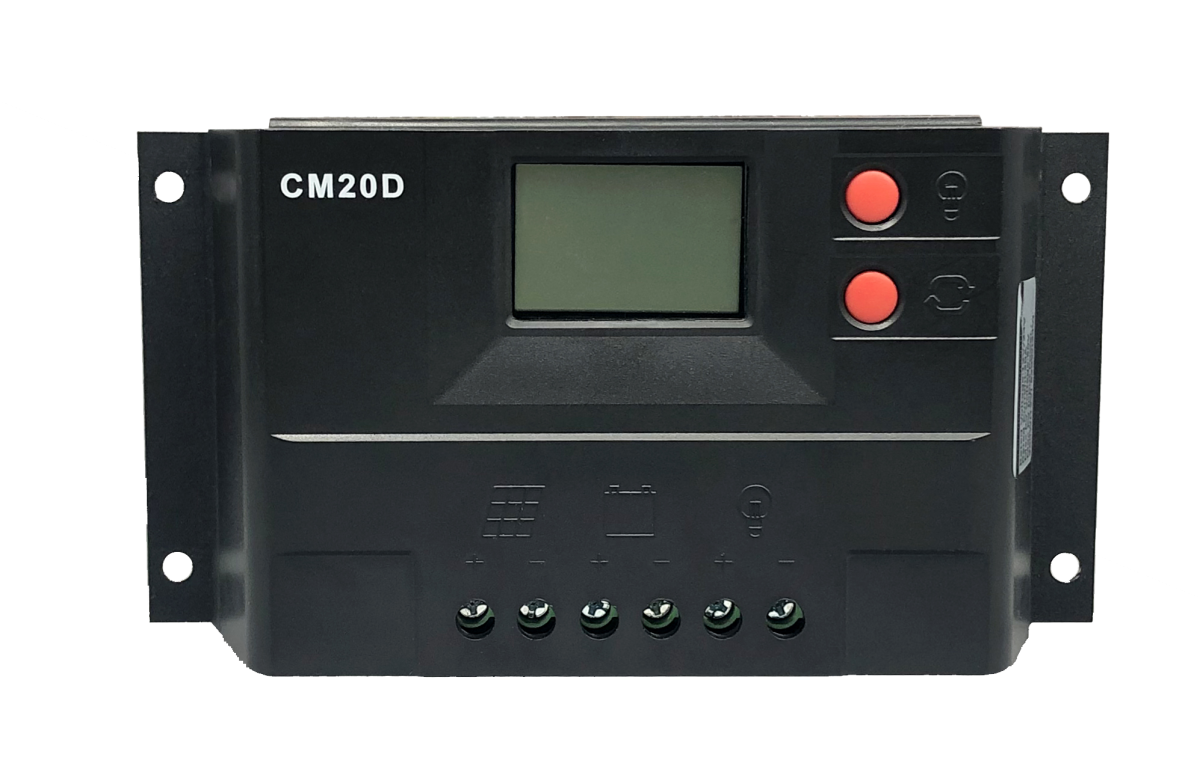

WH-CM20D-20
WH-12200
WH-12100
WH-SG1220W
 |
|
DC solar lighting system

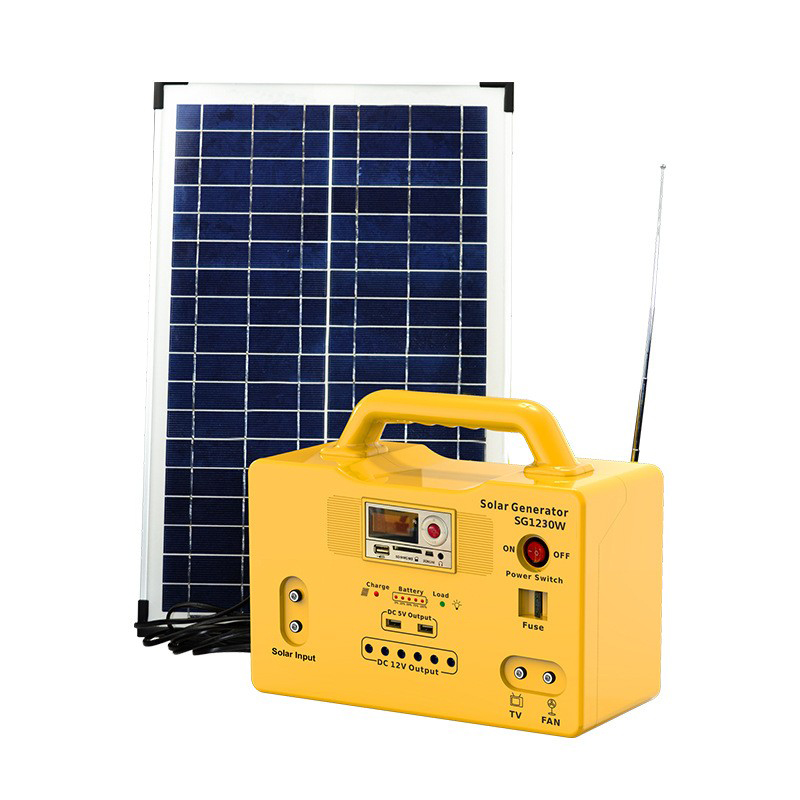

WH-SG1230WBrand:
WANHEMax.Power:
30WDimensions:
OTHERCertificate:
CE ,UL,INMETRO, SUNCAPWarranty:
1 YEARPayment:
T/T, L/C,etc;Features
Specifications
| Model : | WH-SG1230W | |||||
| Solar panel | 18V-30W with 8M cable | |||||
| Battery | 12V 17AH lead-acid | |||||
| LED bulb | 12V-3W*3pcs &12V/5W*3pcswith 4M cable and switch | |||||
| USB output | 5V-1A*2 | |||||
| Solar controller | 12V-5A | |||||
| Min stereo | MP 3 player, Radio function | |||||
| Output voltage | USB 5V output: 5V-2A(MAX) | |||||
| DC 12V output: 12V-0.5A*6(MAX) | ||||||
| Charging mode | PWM | |||||
| Charging time | 10H | |||||
| Fuse | 15A | |||||
| Package |
2pcs/CTN, 17KG, 535*350*315mm Solar panel package: 10pcs/CTN, 30.5KG, 720*325*378mm |
|||||
| Color | Yellow | |||||
