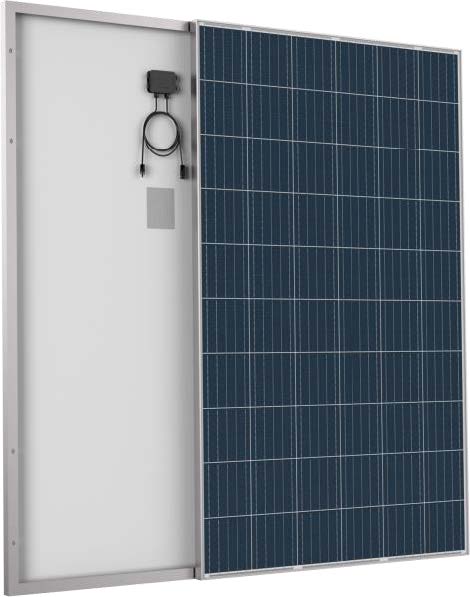

250w Poly Solar Panel
WHSL-156P250Brand:
WANHEMax.Power:
250WDimensions:
1640 X 992 X 35 mmCertificate:
CE ,UL,INMETRO, SUNCAPWarranty:
1 YEARPayment:
T/T, L/C,etc;
250w Poly Solar Panel,Solar Panel,Solar Panel Supplier,Poly Solar Panel
WH Company Supply High Quality Solar Panel,Poly Solar Panel,The Solar Cell Effciency Can Be Reached 16%-20.5%.
Technical Parameter of Poly Solar Panel
|
Module |
WHSL-156P250 |
|
Power (W) |
250 |
|
Voltage at Pmax (V) |
30.68 |
|
Current at Pmax (A) |
8.15 |
|
Open Circuit Voltage (V) |
36.92 |
|
Short Circuit Current (A) |
9.02 |
|
Dimension （mm） |
1640*992*35 |
|
Terminal Box |
IP65 |
|
Maximum system voltage (V) |
DC1500 |
|
Operating Temperature(℃) |
-40℃ ---85℃ |
