WHSL-182M80
WHSL-182M100
WHSL-182M120
WHSL-182M160
 |
|

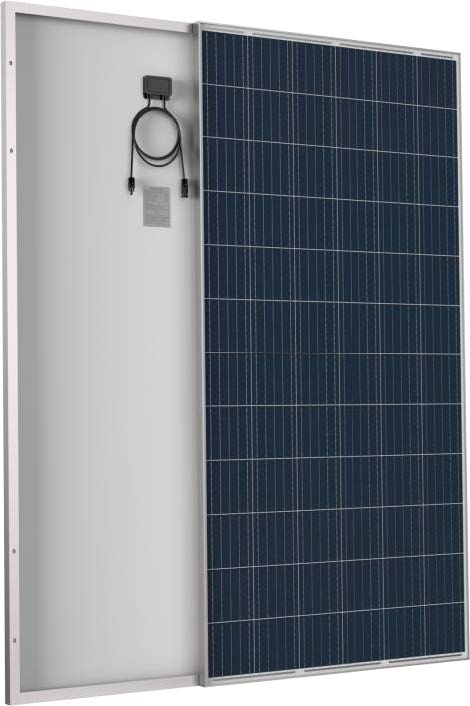

300w Poly Solar Panel
WHSL-156P300Brand:
WANHEMax.Power:
300WDimensions:
1956 X 992 X 35 mmCertificate:
CE ,UL,INMETRO, SUNCAPWarranty:
5 YEARPayment:
T/T, L/C,etc;
300w Poly Solar Panel,Solar Panel,Solar Panel Supplier,Poly Solar Panel
WH Company Supply High Quality Solar Panel,Poly Solar Panel,The Solar Cell Effciency Can Be Reached 16%-20.5%.
Technical Parameter of Poly Solar Panel
|
Module |
WHSL-156P300 |
|
Power (W) |
300 |
|
Voltage at Pmax (V) |
37.23 |
|
Current at Pmax (A) |
8.06 |
|
Open Circuit Voltage (V) |
44.71 |
|
Short Circuit Current (A) |
8.95 |
|
Dimension （mm） |
1956*992*35 |
|
Terminal Box |
IP65 |
|
Maximum system voltage (V) |
DC1500 |
|
Operating Temperature(℃) |
-40℃ ---85℃ |
