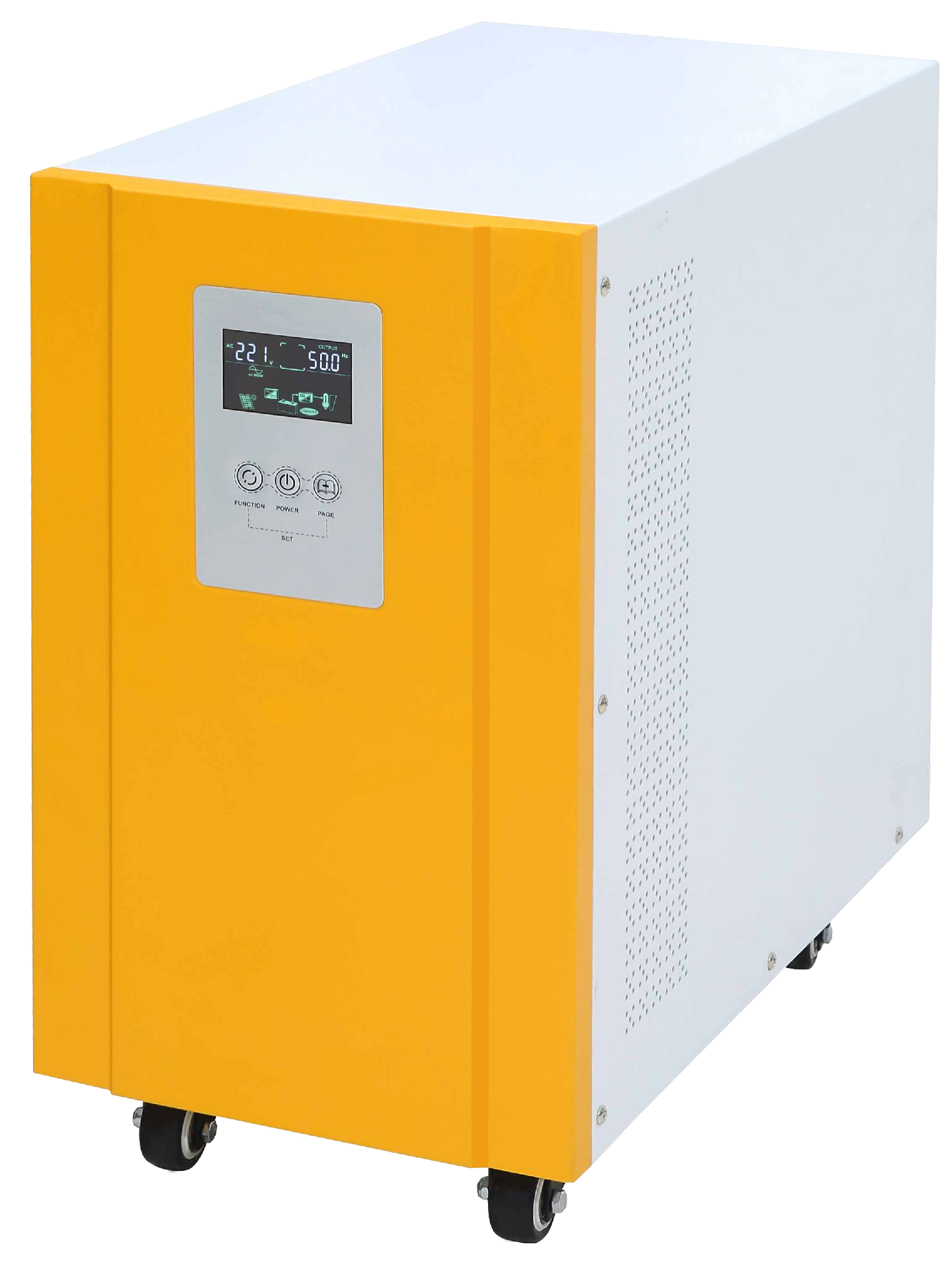

Low Frequency Solar Inverter
WH07-12-WP-ACBrand:
WanheRated Power:
700WAC Voltage:
220V / 230V / 240VDC Input Voltage:
12VOutput Waveform:

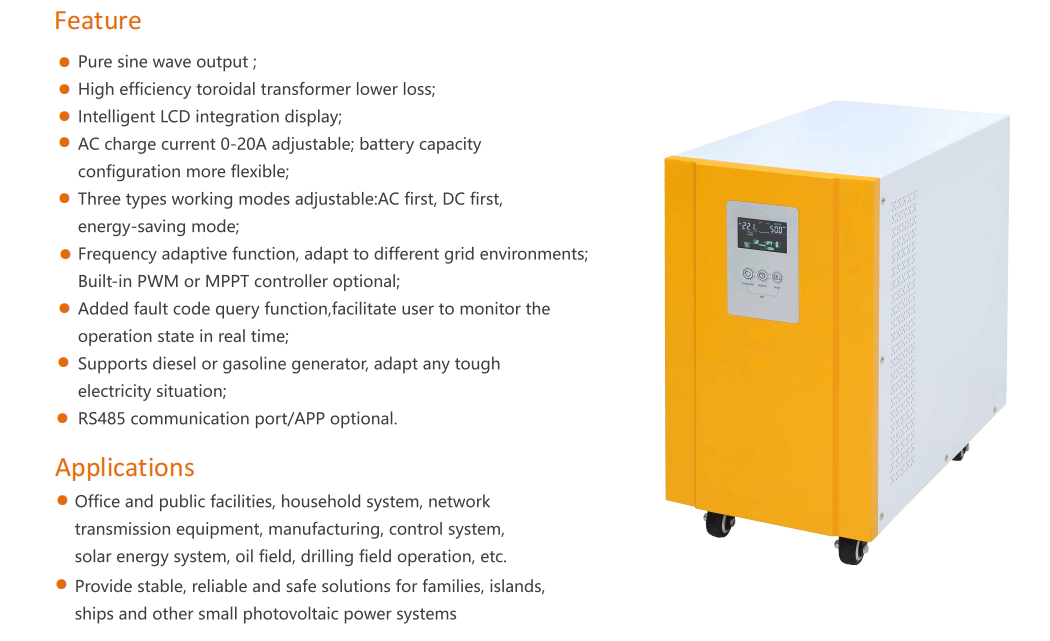

Pure Sine WaveFeatures
Specifications
| Model | WH07-12-WP-AC | WH10-12-WP-AC | |
| Rated Power | 700W | 1000W | |
| Peak Power（20ms) | 2100VA | 3000VA | |
| Battery Voltage | 12VDC | 12VDC | |
| Max AC Charging Power | 175W | 250W | |
| Input Data | |||
| DC Input Voltage | 10.5-15VDC | 10.5-15VDC | |
| AC Input Voltage | 145VAC 〜275VAC(220VAC) | ||
| AC Input Frequency | 45Hz~55Hz (50Hz) | ||
| AC Charging Method | Three-stage (constant current, constant voltage, floating charge) | ||
| Output Data | |||
| Output Wave (Battery Mode) | Pure Sine Wave | ||
| Efficiency (Battery Mode) | >85% | ||
| Output Voltage (Battery Mode) | 220VAC±2% | ||
| Output Frequency (Battery Mode) | 50Hz±0.5 | ||
| Output Voltage (AC Mode) | Follow input voltage | ||
| Efficiency (AC Mode) | >99% | ||
| Output Frequency (AC Mode) | Tracking Automatically | ||
| General Data | |||
| Lead acid & Lithium battery | Set different low-voltage and high-voltage charging and discharging voltage values according to different battery types. Low-voltage and high-voltage protection, over-temperature protection etc. | ||
| Protection & Alarm | |||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||
| Transfer Time | <4ms | ||
| Display Type | LCD | ||
| Thermal Method | Cooling fan under intelligent control | ||
| Communication (Optional) | RS485/APP (WIFI monitoring or GPRS monitoring) | ||
| Operating Temperature | -10°C~40°C | ||
| Storage Temperature | -15°C~60°C | ||
| Noise | <55dB | ||
| Humidity | 0%~95% ,No condensation | ||
| Product Size (L*W*H, mm) | 340x165x283 | ||
| Product Weight (kg) | 9.5 | 10.5 | |
