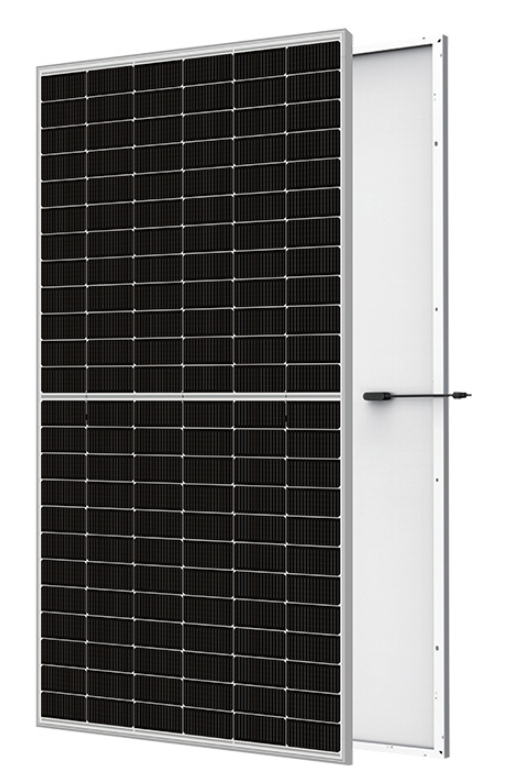

Mono Half-cut Solar Module
WHSL-M550HBrand:
WanheMax.Power:
550WDimensions:
2279*1134*35 mmCertificate:
TUV,CE,INMETRO,SONCAP etc.Warranty:
12 yearsPayment:
T/T,L/CFeatures
Specifications
| Model Type | WHSL-M410H | WHSL-M450H | WHSL-M550H | WHSL-M555H |
| Peak Power (Pmax) | 410W | 450W | 550W | 555W |
| Maximum Power Voltage (Vmp) | 31.46 | 34.79 | 42.10 | 42.27 |
| Maximum Power Current (Imp) | 13.04 | 12.94 | 13.06 | 13.13 |
| Open-circuit Voltage (Voc) | 37.45±3% | 41.40±3% | 50.10±3% | 50.30±3% |
| Short-circuit Current (Isc) | 13.85±3% | 13.74±3% | 14.01±3% | 14.10±3% |
| Module Efficiency (%) | 21.00 | 20.78 | 21.29 | 21.28 |
| Solar Cell Type | 182*91 | 182*91 | 182*91 | 182*91 |

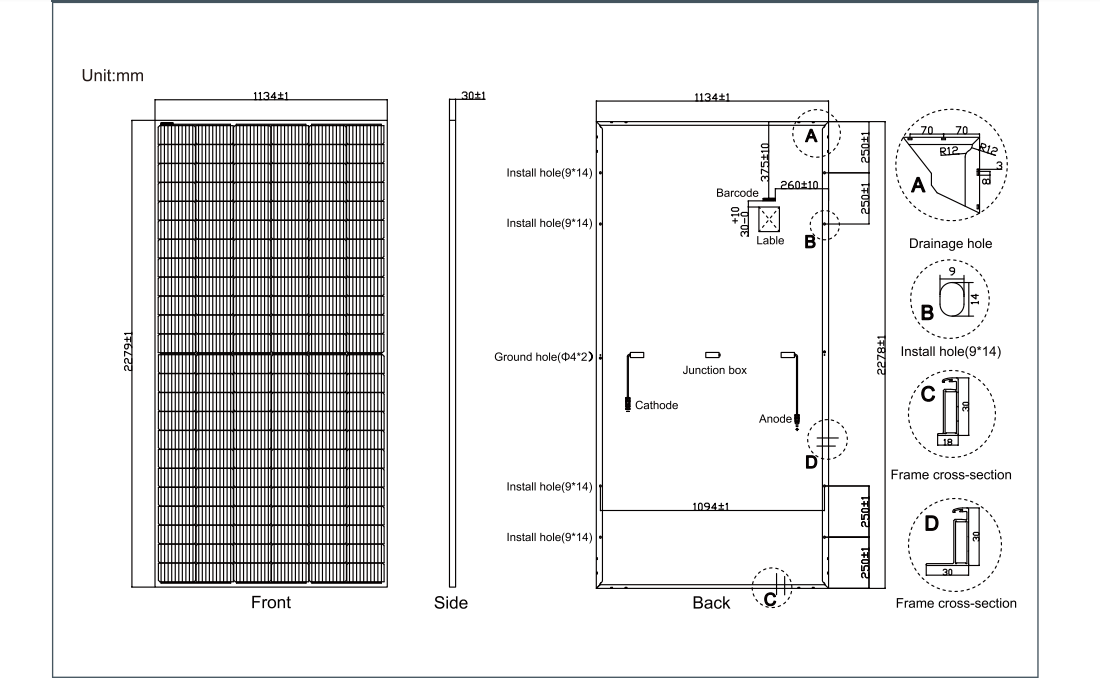

| Dimension (mm) | 1722*1134*30 | 1909*1134*35 | 2279*1134*35 | 2279*1134*35 |
