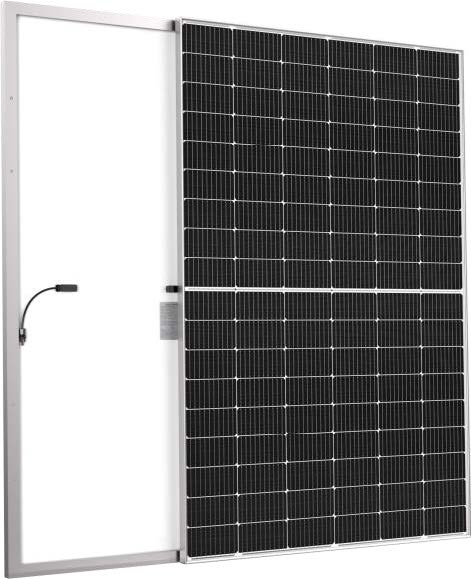

400w Mono Solar Panel
WHSL-182M400Brand:
WANHEMax.Power:
400WDimensions:
1722 X 1134 X 35 mmWarranty:
5 YEARPayment:
T/T, L/C,etc;400w Mono Solar Panel,Solar Panel,Solar Panel Supplier,Mono Solar Panel
WH Company Supply High Quality Solar Panel,Mono Solar Panel,The Solar Cell Effciency Can Be Reached 18%-21%.
Technical Parameter of Mono Solar Panel
Module |
WHSL-182M400 |
Power (W) |
400 |
Voltage at Pmax (V) |
30.66 |
Current at Pmax (A) |
13.06 |
Open Circuit Voltage (V) |
36.96 |
Short Circuit Current (A) |
13.82 |
Dimension (mm) |
1722*1134*35 |
Terminal Box |
IP65 |
Maximum system voltage (V) |
DC1500 |
Operating Temperature(℃) |
-40℃ ---85℃ |
