WHSL-182M80
WHSL-182M100
WHSL-182M120
WHSL-182M160
 |
|

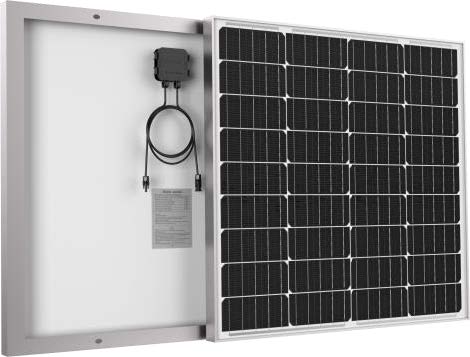

80w Mono Solar Panel
WHSL-158M80Brand:
WANHEMax.Power:
80WDimensions:
680 X 650 X 25 mmWarranty:
5 YEARPayment:
T/T, L/C,etc;
80w Mono Solar Panel,Solar Panel,Solar Panel Supplier,Mono Solar Panel
WH Company Supply High Quality Solar Panel,Mono Solar Panel,The Solar Cell Effciency Can Be Reached 18%-21%.
|
Module |
WHSL-158M80 |
|
Power (W) |
80 |
|
Voltage at Pmax (V) |
17.5 |
|
Current at Pmax (A) |
4.57 |
|
Open Circuit Voltage (V) |
21.5 |
|
Short Circuit Current (A) |
4.96 |
|
Dimension （mm） |
680*650*25 |
|
Terminal Box |
IP65 |
|
Maximum system voltage (V) |
DC1000 |
|
Operating Temperature(℃) |
-40℃ ---85℃ |
