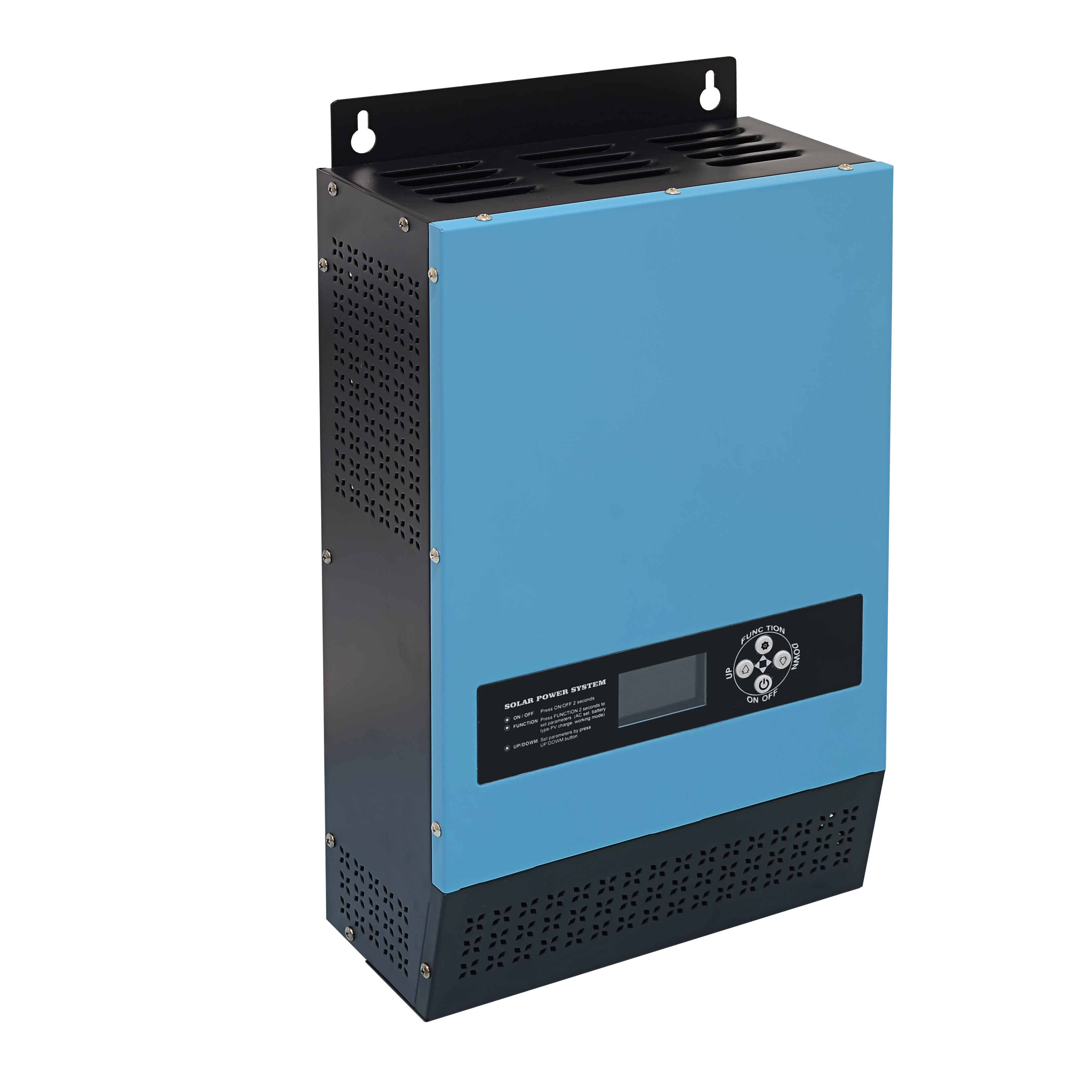

Low Frequency Hybrid Inverter
WH20-24-LSBrand:
WanheRated Power:
2000WAC Voltage:
220V/230V/240V/110V/120VDC Input Voltage:
24VMax.Charging Current:
30A / 60A for optionalOutput Waveform:

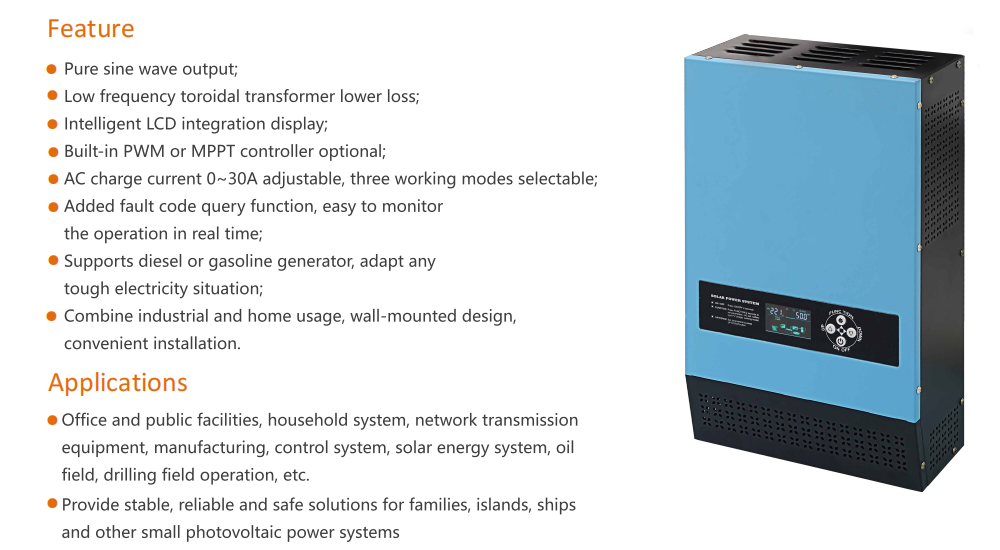

Pure Sine WaveFeatures
Specifications
| Model | WH10-12-LS | WH15-12-LS | WH20-24-LS | WH30-24-LS | WH50-48-LS | WH60-48-LS | |
| Rated Power | 1000W | 1500W | 2000W | 3000W | 5000W | 6000W | |
| Peak Power（20ms) | 3000VA | 4500VA | 6000VA | 9000VA | 15000VA | 18000VA | |
| Battery Voltage | 12VDC | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC | |
| Input Data | |||||||
| DC Input Voltage | 10.5-15VDC | 10.5-15VDC | 21-30VDC | 21-30VDC | 42-60VDC | 42-60VDC | |
| AC Input Voltage | 170VAC~275VAC (220VAC) / 180VAC~285VAC (230VAC) / 85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) | ||||||
| AC Input Frequency | 45~55Hz（50Hz) / 55~65Hz（60Hz) | ||||||
| Max AC Charging Current | 0~30A(Depending on the model） | ||||||
| AC Charging Method | Three-stage (constant current, constant voltage, floating charge) | ||||||
| Output Data | |||||||
| Output Wave (Battery Mode) | Pure Sine Wave | ||||||
| Efficiency (Battery Mode) | ≥85% | ||||||
| Output Voltage (Battery Mode) | 220VAC±2% / 230VAC±2% /110VAC±2% / 120VAC±2% | ||||||
| Output Frequency (Battery Mode) | 50/60Hz±1% | ||||||
| Output Voltage (AC Mode) | 220VAC±10% / 230VAC±10% / 110VAC±10% / 120VAC±10% | ||||||
| Efficiency (AC Mode) | >99% | ||||||
| Output Frequency (AC Mode) | Tracking Automatically | ||||||
| General Data | |||||||
| Lead acid & Lithium battery | Set different low-voltage and high-voltage charging and discharging voltage values according to different battery types. Low-voltage and high-voltage protection, over-temperature protection etc. | ||||||
| Protection & Alarm | |||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||||
| Transfer Time | ≤4ms | ||||||
| Display Type | LCD | ||||||
| Thermal Method | Cooling fan under intelligent control | ||||||
| Communication (Optional) | RS485/APP (WIFI monitoring or GPRS monitoring) | ||||||
| Operating Temperature | -10℃~40℃ | ||||||
| Storage Temperature | -15℃~60℃ | ||||||
| Noise | ≤55dB | ||||||
| Humidity | 0%~95% ,No condensation | ||||||
| Product Size (L*W*H, mm) | 500*300*140 | 530*335*150 | |||||
| Product Weight (kg) | 12 | 13.5 | 18 | 20 | 24 | 26 | |
